Modern electronics have a PN junction diode as an important component. It is made by joining P and N type semiconductor materials. There are many ways to form a PN Junction Diode. Each method has its advantages and disadvantages. There are three main methods to explain the formation of pn junction diode: the diffusion, epitaxy, and ion-implantation.
It is important to understand the differences in forming a PN Junction Diode. This will allow you to choose the right method for your application. We will be discussing in detail the three main methods for forming a PN Junction Diode.
- 1 Methods for the Formation of pn junction diode
- 2 FAQ’s on Formation of pn junction diode
Methods for the Formation of pn junction diode
The PN junction diode is a fundamental component in electronic circuits that allows current to flow in only one direction. It is formed by joining P-type and N-type semiconductor materials. There are different methods of forming a PN junction diode, each with its own advantages and disadvantages. In this article, we will explain the three main methods of forming a PN junction diode.
- Diffusion method
- Ion implantation method
- Epitaxy method
The diffusion method is the most commonly used method of forming a PN junction diode. In this method, a layer of impurity atoms, such as boron or phosphorus, is deposited on the surface of a semiconductor wafer. The wafer is then heated in a furnace, causing the impurity atoms to diffuse into the semiconductor material and create either a P-type or N-type region. The process results in a well-defined PN junction with a low resistance. The depth of the junction is determined by the diffusion time and temperature.
In this method, impurities (dopants) are diffused into the semiconductor material to create the p-type and n-type regions. This method can be performed using a variety of techniques, such as gas diffusion, solid-state diffusion, or laser doping.

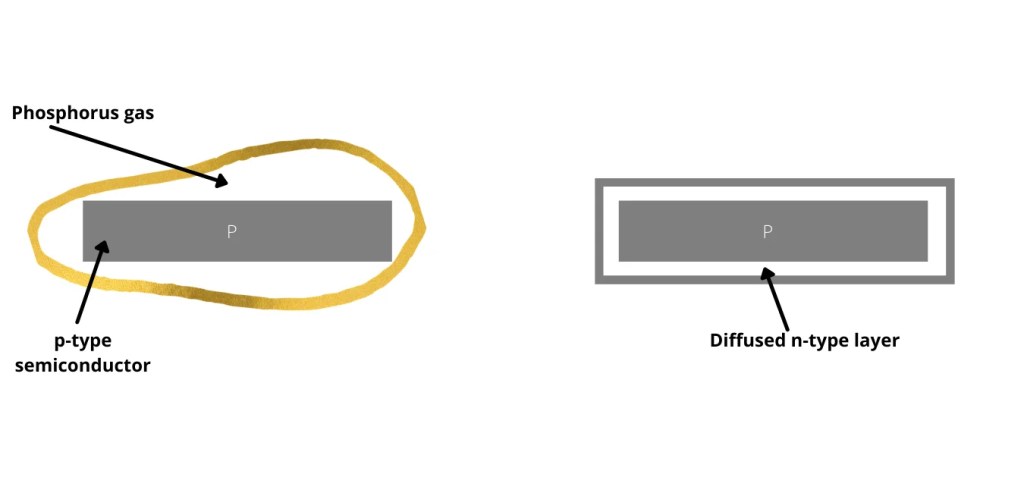

PN junction can be made by diffusion of a pentavalent impurity like Phosphorus into a p-type semiconductor. In this process, a p-type semiconductor is heated in Phosphorus gas to result in diffused n-type layer on the semiconductor.
Advantages and Disadvantages of Diffusion method
Advantages of Diffusion method
- Low cost: The diffusion process is relatively inexpensive compared to other methods for forming a PN Junction Diode.
- A well-defined junction depth can be achieved by adjusting temperature and diffusion time. This results in a well-defined PN Junction.
- High-quality junction: The diffusion process creates a high quality PN junction with low resistance. This makes it suitable for many applications.
Disadvantages of Diffusion method
- You have limited control over the form of the junction. The geometry of the diffusion filter determines the shape of a junction. This limits your control.
- High-temperature furnace required: To diffuse certain materials, a high temperature furnace is necessary.
- Limitations on certain impurity elements: Only impurity electrons can be diffused into semiconductor materials using the diffusion method. This restricts the materials that can be used to create PN junctions.
Despite its limitations the diffusion method is still the most popular method for forming a PN Junction diode. This is due to its low cost, high-quality results and other advantages.
In this method, the semiconductor material is doped with impurities to create the p-type and n-type regions. The p-type and n-type materials are then brought into contact to form the pn junction. This method can be performed using various techniques, such as ion implantation, thermal diffusion, or chemical doping.
Ion implantation is the use of high energy ion beams to inject impurity atoms in a semiconductor material. The impurity particles are then accelerated and inserted into the semiconductor material. This creates either a P or N-type region. You can adjust the energy of an ion beam to control the depth of the implanted area.
This allows precise control of the location and depth the PN junction. Although it is more costly than the diffusion method, it is still useful for creating diodes that have specific properties for specialized applications.

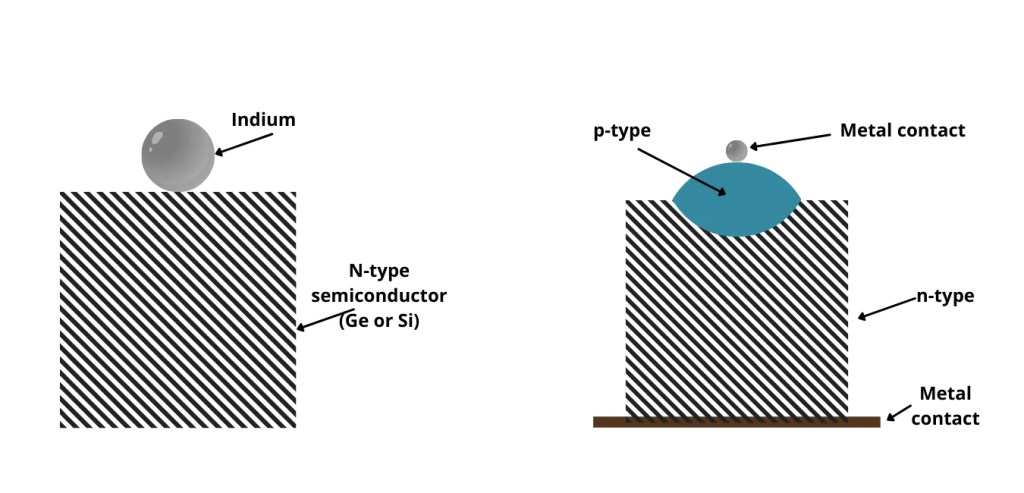

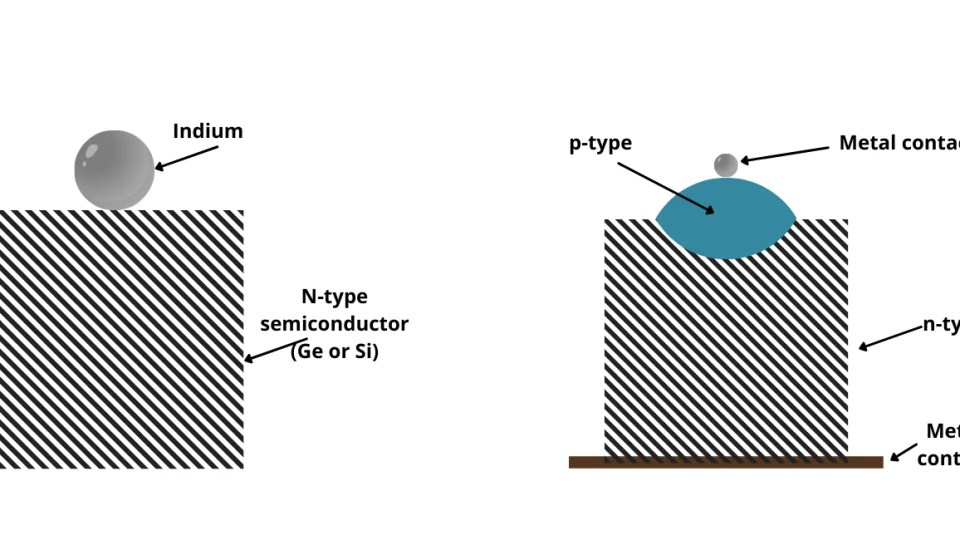

A small sphere of trivalent impurity says indium is pressed on a thin wafer of n-type germanium or silicon slab. The system is heated so that the Indium to the surface of Germanium and produces P-type Germanium just below the source of contact.
This p- types along with the n- type Germanium wafer from a P-N junction. Both the upper and lower portion of the system have metallic contacts.
Advantages of Ion-implantation method
- Control of doping concentrations and depths: Ion implantation allows precise control over the doping concentrations and depths. This results in a controlled and well-defined PN junction.
- It can be used with many materials: Ion implant is possible with silicon, gallium arsenide and other compound semiconductors.
- Low thermal budget: Ion Implantation is a low temperature process that allows for the implantation ions into delicate structures.
Disadvantages of Ion-implantation method
- High cost: Ionization equipment can be expensive and requires a clean environment. This makes it costly.
- It is not suitable for large-scale production because of its limited implantation area.
- High-energy ions can cause damage in semiconductor materials, which can lead to changes in the material’s electrical properties.
Despite its drawbacks, ion implantation is still a viable method of doping semiconductor materials and creating PN Junctions with precise control over doping concentrations and depths. It is especially important for advanced microelectronics production, where precise control of the doping profile is crucial to device performance.
Epitaxy is a variation on the diffusion method. It involves the growth of a thin layer one semiconductor material on top a substrate of another. It is possible to grow a thin layer of N-type or P-type material on top the substrate and create a PN junction by controlling the growth conditions. This process can create complex structures using multiple layers of different materials. Epitaxy is a method that creates high-performance diodes suitable for specialized applications such as optoelectronics and high-frequency electronics.
Advantages and Disadvantages of Epitaxy method
Advantages of Epitaxy method
- Epitaxy allows precise control of layer thickness and composition. This results in a well-controlled and high-quality interface between layers.
- High material quality: Epitaxial layer have high material qualities, which can lead to improved device performance and lower defect density.
- High Scalability: Epitaxy is able to create large-area layers of high quality and can be scaled up for large-scale production.
Disadvantages of Epitaxy method
- Equipment that is too expensive: Small-scale production can be hindered by high-priced equipment.
- Limitations on certain materials: Epitaxy can only be used with certain combinations of material, such as silicon, germanium, and III-V compounds. This can limit the number of devices that can produced by this method.
- Complexity of the growth process: Epitaxial Growth is complex and requires precise control over temperature pressure and gas flow. This can prove difficult to optimize.
Although epitaxy has its drawbacks, it is still a useful method to produce high-quality semiconductor materials as well as complex devices with multiple layers made of different materials. It is especially important for advanced microelectronics production, where precise control of material properties and high-quality materials are crucial to device performance.
In conclusion, the formation of a PN junction diode can be achieved through different methods, each with its own advantages and disadvantages. The diffusion method is the most commonly used method due to its low cost, high quality, and well-defined junction depth. The epitaxy method is useful for creating complex structures with multiple layers of different materials, while the ion implantation method allows for precise control over the location and depth of the PN junction. Understanding the different methods of forming a PN junction diode is essential for selecting the appropriate method for a specific application.
FAQ’s on Formation of pn junction diode
How pn junction is formed?
When a p-type semiconductor is brought in close contact with an n-type semiconductor by stable means, the arrangement of both the semiconductors is known as the PN junction.
Explain the formation of pn junction diode
The PN junction diode is a fundamental component in electronic circuits that allows current to flow in only one direction. It is formed by joining P-type and N-type semiconductor materials. There are different methods of forming a PN junction diode, each with its own advantages and disadvantages.
Three main methods for the formation of pn junction diode:
Ion implantation method
