Scintillation Counter – Principle, Construction and Working, 5 applications.

A scintillation counter is a type of radiation detector that uses a scintillator material to detect and measure ionizing radiation. The scintillation counter principle of working involves the interaction of the radiation with the scintillator material, which results in the production of light photons. These photons are then detected by a photomultiplier tube, which converts them into electrical pulses that can be amplified and processed for counting and recording.

In this article we will study about the Definition, Principle, Construction and working, application of scintillation counter in detail.

Scintillation Counter

What is scintillation counter?

The scintillation counter is a device used for detecting and measuring the ionizing of radiation.

The Scintillation counter in its simplest form was first introduced by Rutherford and his co-worker while studying the luminance excited in ZnS by Alpha particles. A screen coated with zinc sulfide or barium Platinocyanide or calcium tungstate when exposed to Alpha particles produces scintillations which were counted by a low power microscope.

The instrument so devised was called Spintheriscope. The process of counting scintillations is a tedious process. The eye restricts the count to about 100 per minute.

The invention of the photomultiplier tubes and a better understanding of the luminescent properties of organic and inorganic substances have removed this drawback and the scintillation counter is now widely used in studying nuclear radiations.

Scintillation Counter Principle Construction and Working

Scintillation Counter Principle

The principle of a scintillation counter involves the interaction of ionizing radiation with a scintillator material to produce light photons, which are then detected by a photomultiplier tube.

A simple scintillation counter was first introduced by Karan and Barca in 1994. The pulses produced are detected in conventional electronic circuits after suitable amplification. Pulses produced by Alpha particles were detected by  ZnS, phosphor with an efficiency of 100%.

Later Kallman (1947) extended its application β and γ ray detection by using Anthracene and Naphthalene transparent crystals as fluorescent media. Hofstadter discovered that Nal had better efficiency and larger intensity for γ ray counting work.

Construction of Scintillation Counter

The complete scintillation counter construction is consists of three basic parts:

  1. The scintillating material or phosphor produces a tiny light flash when a charged particle strikes it.
  2. The photomultiplier tube detects the light flash and produces an electric pulse.
  3. Amplifiers and electronic circuits record and count the electrical pulses from the photomultiplier tube.

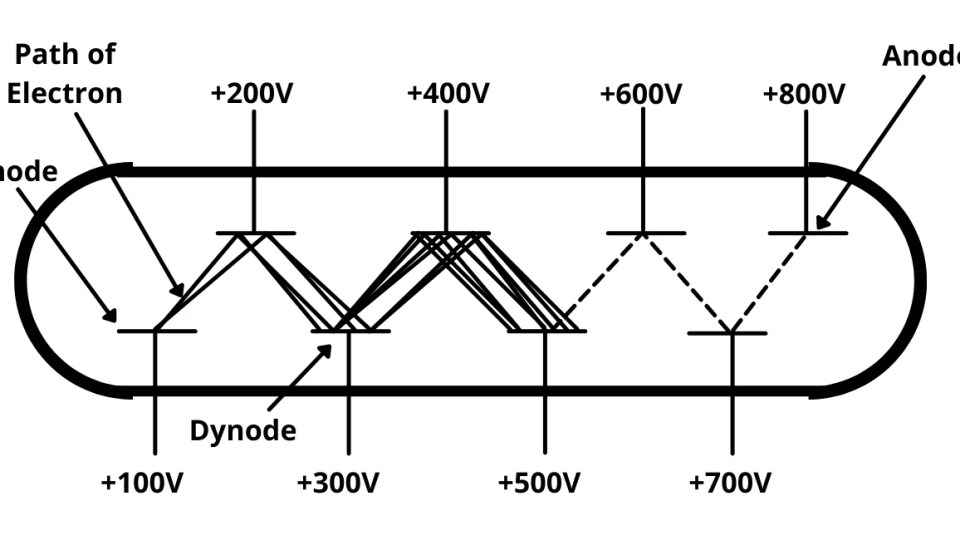

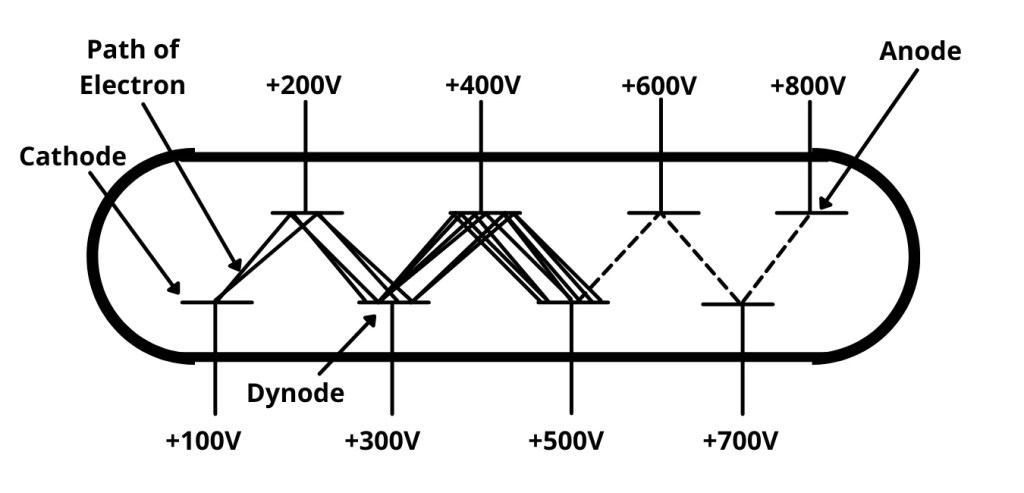

The job of the microscope in a simple scintillator is replaced by a photomultiplier tube. This tube has many electrons card dynodes to which progressively higher potentials are applied as shown in the figure.

Scintillation Counter Principle Construction and Working

The photoelectrons are accelerated in the electrostatic field between the cathode and the first dynode, which is at a positive potential with respect to the cathode. The accelerated electrons impart enough energy to electrons in the dynode to eject some of them.

There may be as many as 10 secondary electrons for each electron that strikes the dynode. This process of multiplication goes on till the last dynode gets an Avalanche of electrons which are finally collected by the anode.

The output current or pulse at the anode may be more than a million times greater than the current originally emitted from the cathode.

Working of Scintillation Counter

The block diagram of the scintillation Counter is shown in the figure which tells us about the working of scintillation counter. S is a source that emits ionizing radiations to produce short-duration light flashes in the phosphor placed in front of the photocathode of a photomultiplier tube.

The process of multiplication takes place to produce an Avalanche of electrons which are finally collected by the anode. A large pulse of several tens of millivolts is produced at the output.

Preamplifier amplifies these Signals and then they are fed to the discriminator whose function is to remove low energy pulses and then they are counted in the scalar. Power to the various stages is supplied by the stabilized power supply.

Scintillation Counter Principle Construction and Working
scintillation counter diagram

Producing of a scintillation flash by the incoming ionizing particles and subsequent generation of an electrical pulse in a photomultiplier are divided into five distinct events.

  1. The incident radiation is first absorbed in the phosphor material and its atoms or molecules are excited.
  2. The excited atoms or molecules of the fluorescent material of the phosphor decay and produce light flash of short duration.
  3. The emitted photons are transmitted to the photocathode of the photomultiplier.
  4. Photoelectrons are produced due to absorption of light photons.
  5. Electron multiplication takes place very quickly and all these operations take place with in about 10-8 seconds.

The electrical pulses produced by photomultiplier tube are proportional to the energy of incident photons. Thus scintillation counter detects radiation as well as measure the energy of radiation.

A typical γ ray spectrum obtained with Cs137 source is shown in figure.

Scintillation Counter Principle Construction and Working

We know that γ-photons of rays interact with matter mainly in three ways:

  1.  Photoelectric effect.
  2.  Compton effect.
  3.  Pair production ( production of positron-electron pair).

Photoelectric effect and Compton effect are most important for γ rays having energy up to 2 MeV. However, the Photoelectric effect is actually utilized because when γ ray incident on a material, photoelectron is emitted.

The energy of the photoelectron is equal to the energy of the absorbed γ ray. In the Photoelectric effect, γ ray loses all its energy to the electron. Therefore, γ rays of the same energy produced photoelectrons of the same energy in a scintillating crystal. The electrical pulse produced in a photomultiplier tube is proportional to the energy of incident γ rays.

A scintillation counter coupled with a multi channel analyser is known as γ ray spectrometer. This spectrometre is calibrated using γ rays of known energy. The width of the full energy peak at half height is called full width at half maximum (FWHM).

The energy resolution of spectrometer is defined as the ratio of FWHM to the energy of γ rays corresponding to the full energy peak.

That it, energy resolution of spectrometer = Δ E / Eγ

Typically, Δ E / Eγ =20% at Eγ = 100 k eV.

When γ rays energies are very close to each other, scintillation counter is not able to separate them. in In such cases, semi  conductor counter is used.

Types of Scintillation Counter Used

  1. Sodium Iodide.
  2. Zinc Sulfide.
  3. Csl.
  4. Anthracene and Stilbene.
  5. Plastic and Liquid Scintillators.
  6. Gases.

Sodium Iodide (Thallium Activated)

This is the most commonly used scintillator in the study of γ rays. In a comparison of GM counter, the efficiency of γ-ray detection is very large. It has one drawback, it is is hygroscopic and therefore has to be sealed in an aluminum can with reflecting or diffusing walls.

Zinc sulfide

It is extensively used for the detection of those particles which have short ranges. It cannot be used in thick layers because it rapidly becomes opaque to its own radiation.

Csl

This is not hygroscopic and is therefore preferred over sodium iodide.

Anthracene and Stilbene

These are organic Phosphors which have a faster decay time then the inorganic Phosphors. For heavy particles, these have very poor efficiency. These are useful for the detection of β-particle. Anthracene gives highest yield of photons about 15 for each 1000 eV.

Plastic and Liquid Scintillators

In these scintillators, the energy of excitation is transferred from the solvent to the solute. This then re-emits radiation in a wavelength range for which the solvent is transparent. These are used in Counter telescopes which are generally used in high energy physics.

Gases

For counting heavy charged particles in the presence of γ-radiation, Xenon is used which emits radiation in the ultraviolet region.

The high efficiency of detection, short resolving time, linearity in response in a wide range of the energy of incident radiation are some of the advantages of the scintillation Counter which make this instrument superior to the conventional G.M. counters.

The most outstanding feature of the scintillation counter over the proportional counter is its extremely short duration pulses and higher resolution.

Application of Scintillation Counter

Scintillation counters has variety of application and used in various fields such as nuclear physics, medical diagnostics, environmental monitoring. These are some of the applications of scintillation counters:

  • It is most efficient for γ-ray counting.
  • With its large size and highly transparent phosphor, it displays very high efficiency.
  • As the pulse height is proportional to the energy of the incident radiation, it is used for the investigation of the energy distribution of nuclear radiations.
  • It is capable of a fast counting rate because the dead time and resolving time are of the order of 10-19 sec. as against 10-5 sec. in the G.M. counter.
ApplicationDescription
Radiation detectionScintillation counter used for detection and measurement of ionizing radiation such as gamma rays, X-rays, and beta particles
Medical diagnosticsScintillation counters used for radioisotope imaging and radioimmunoassay to diagnose diseases and conditions
Nuclear physics researchScintillation counters used to study subatomic particles and their interactions in experiments involving high-energy particle accelerators and cosmic ray detection
Homeland securityScintillation counters used for detection of radioactive materials at ports, airports, and border crossings to prevent smuggling of radioactive materials and ensure public safety
Oil explorationIt is used to measure the amount of natural radioactive isotopes in rock formations to locate oil and gas reserves

5 Advantages of Scintillation Counter

  • High sensitivity.
  • Wide range of detection.
  • High resolution.
  • Fast response time.
  • Low background noise.
  • Portable.

Disadvantages of Scintillation Counter

  • Scintillation counters are complex instruments that require specialized knowledge and training to operate and maintain.
  • Scintillation counters can be expensive, especially for high-resolution, high-sensitivity models.
  • Some types of scintillation counters are sensitive to temperature changes, which can affect their performance and accuracy.
  • Scintillation counters use radioactive materials such as sodium iodide or plastic scintillators, which can pose a health and safety risk if not handled properly.

FAQ’s on Scintillation Counter

What are the different types of scintillation detectors?

Sodium Iodide.
Zinc Sulfide.
Csl.
Anthracene and Stilbene.
Plastic and Liquid Scintillators.
Gases.

What are the advantages of scintillation detector?

High sensitivity.
Wide range of detection.
High resolution.
Fast response time.
Low background noise.
Portable.

What are the disadvantages of scintillation counters?

1. Scintillation counters are complex instruments that require specialized knowledge and training to operate and maintain.
2. Scintillation counters can be expensive, especially for high-resolution, high-sensitivity models.
3. Some types of scintillation counters are sensitive to temperature changes, which can affect their performance and accuracy.
4. Scintillation counters use radioactive materials such as sodium iodide or plastic scintillators, which can pose a health and safety risk if not handled properly.
